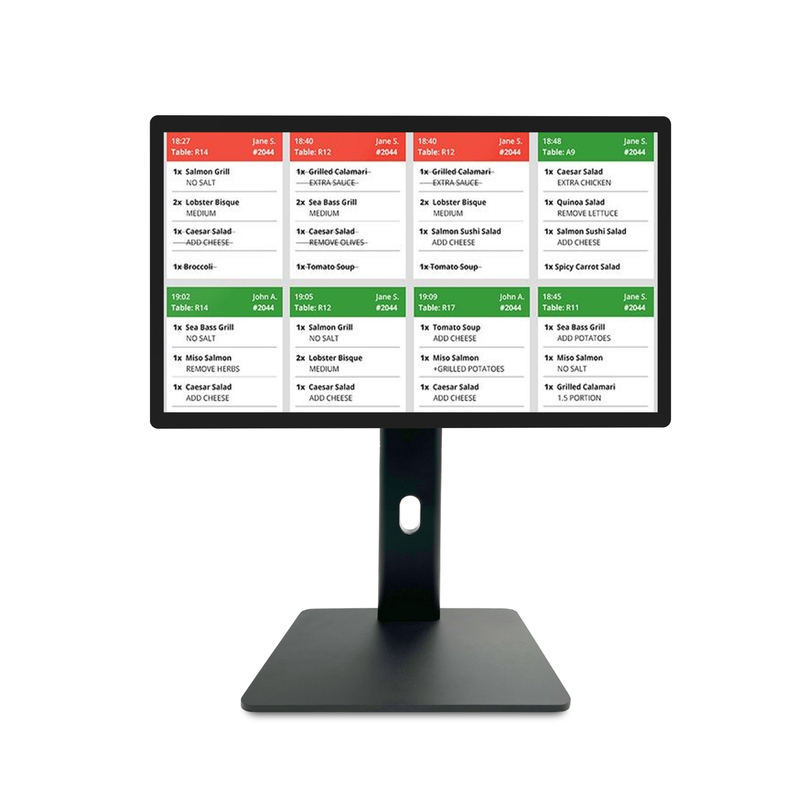

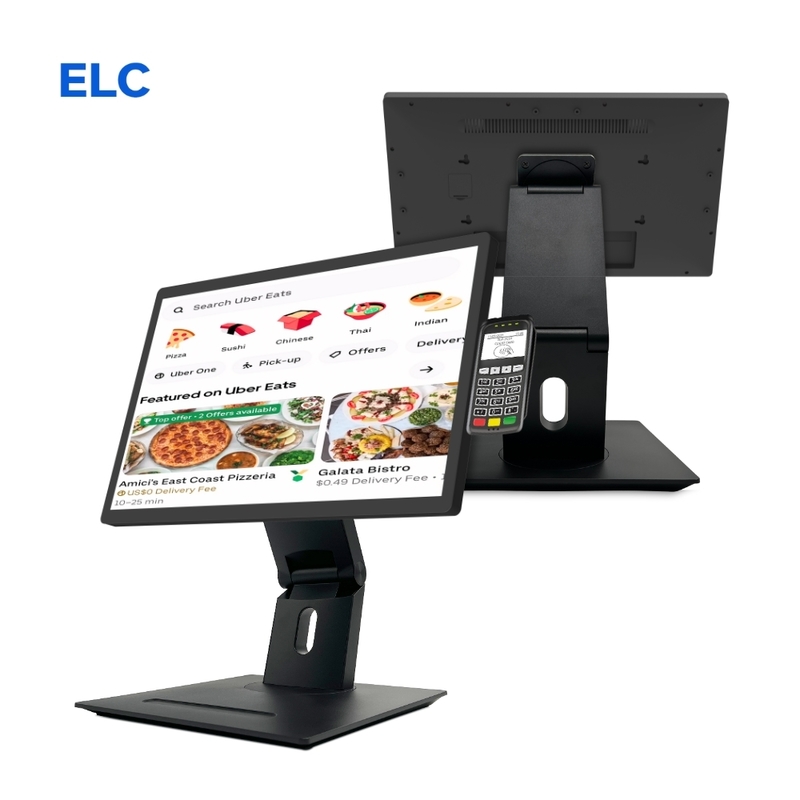

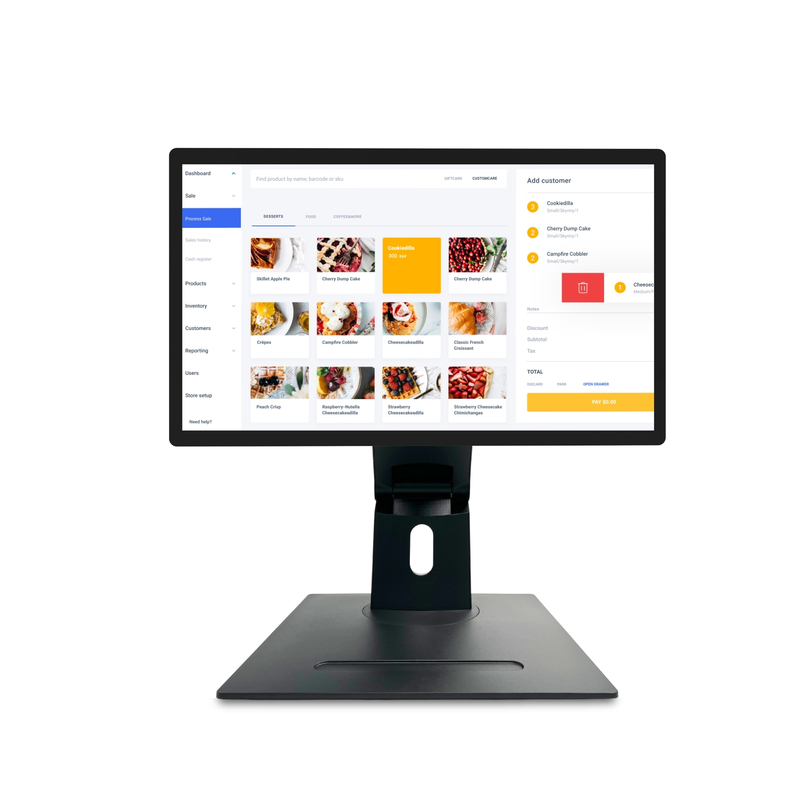

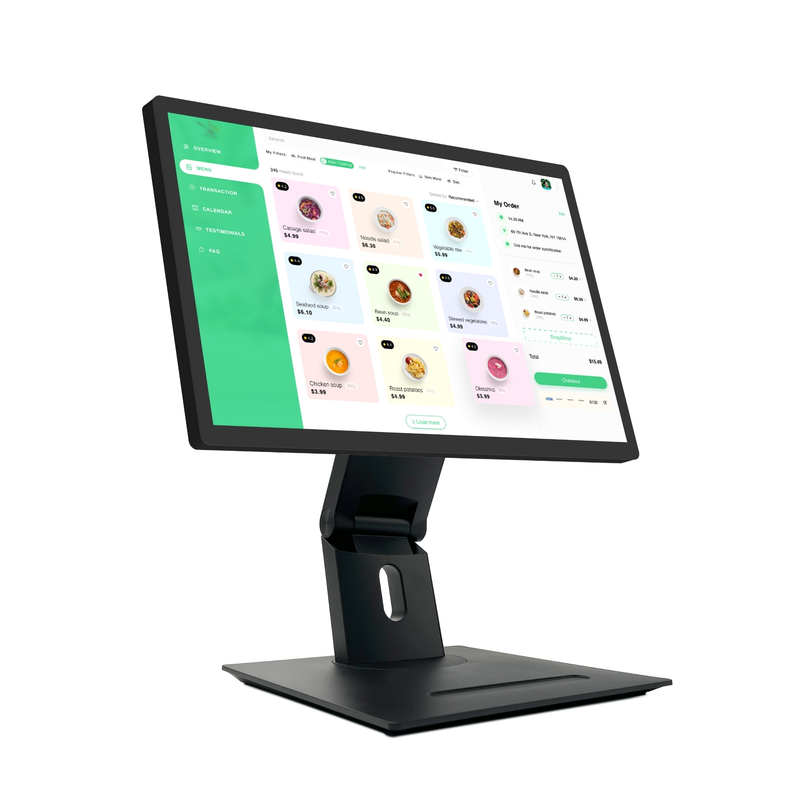

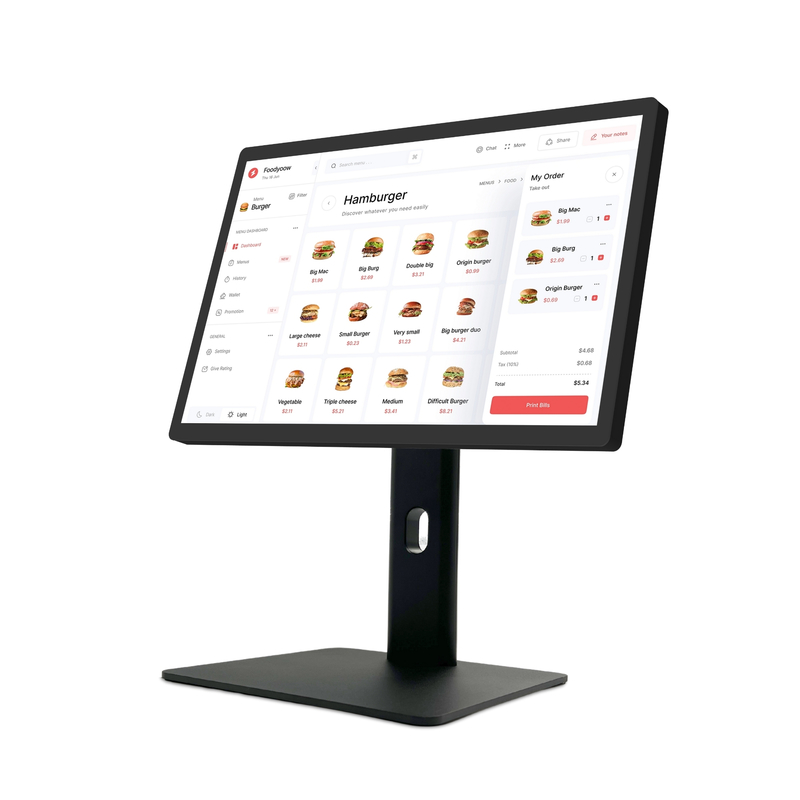

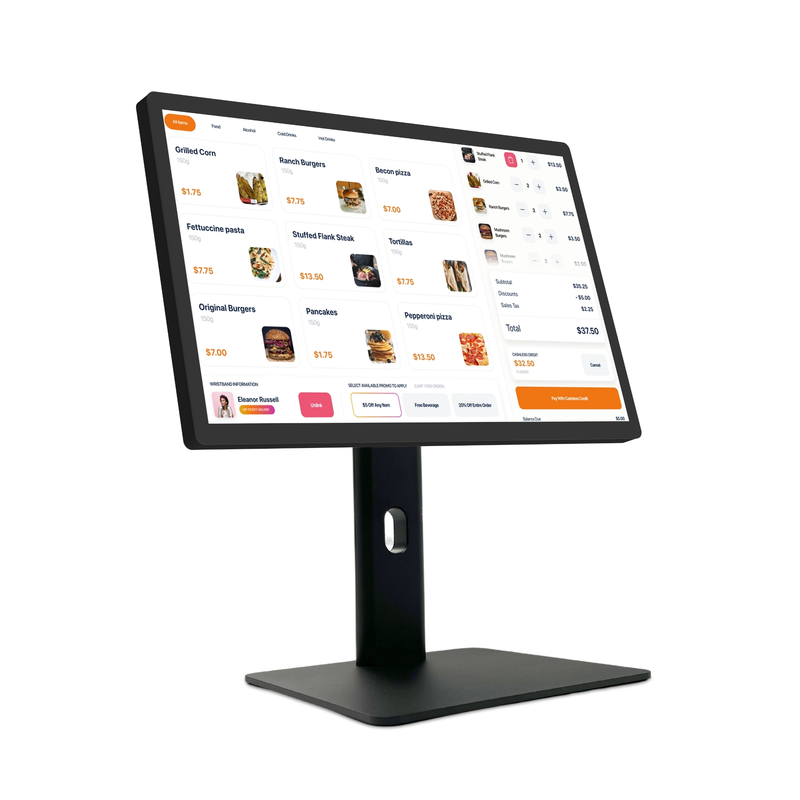

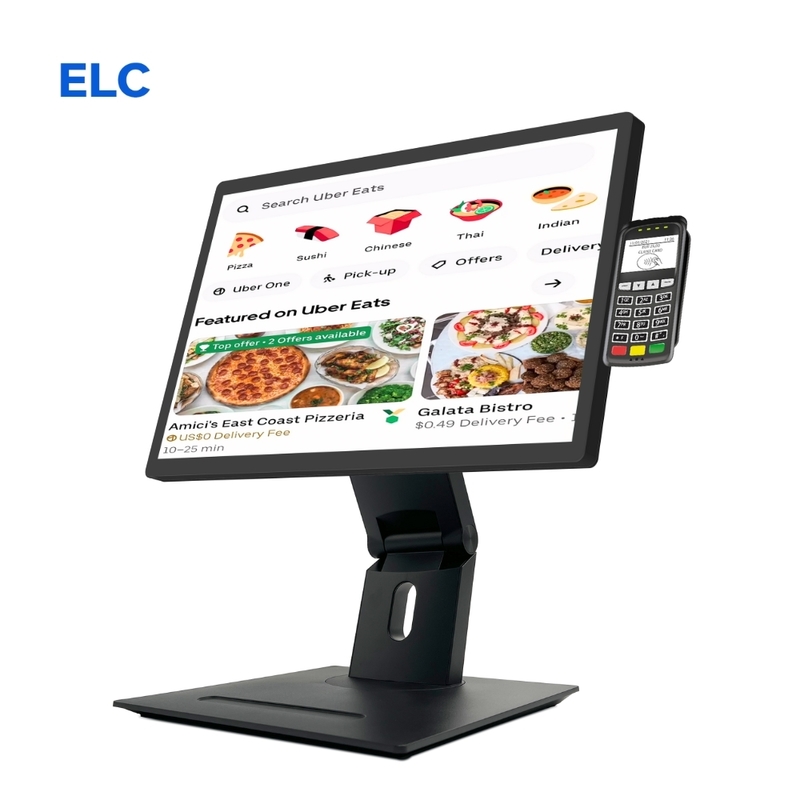

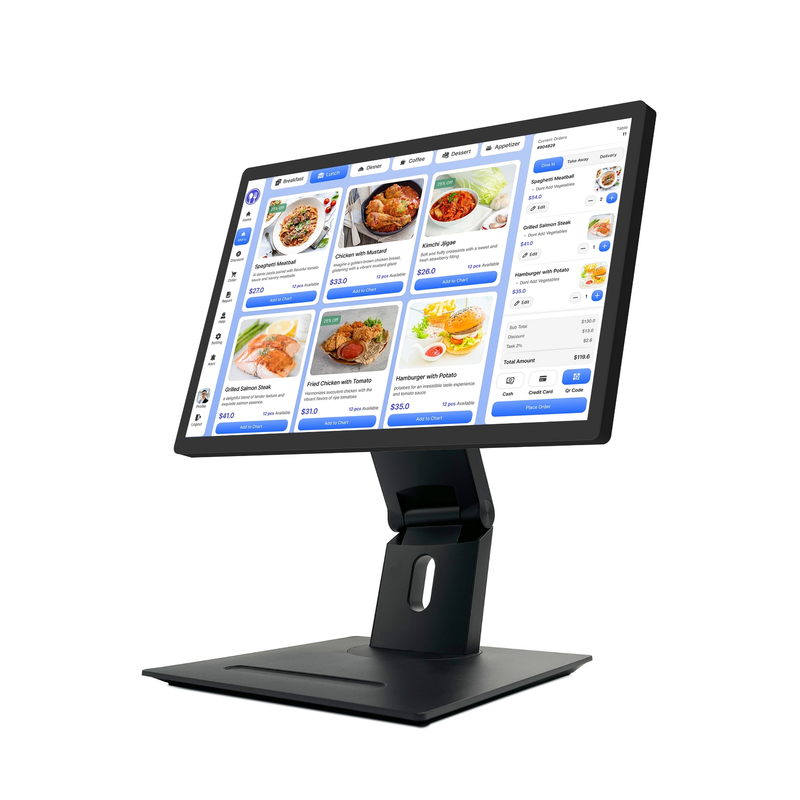

| Model: | WF2138T |
|---|---|
| CPU: | RK3568 Quad Core Cortex A55 |
| Operation System: | Android 11 |
| Adjustable: | Rotate/Swivel/Tilt/Height/movable |
| Touch: | 10-Point Capacitive Touch |
| Model: | WF2138T |
|---|---|
| CPU: | RK3568 Quad Core Cortex A55 |
| Operation System: | Android 11 |
| Adjustable: | Rotate/Swivel/Tilt/Height/movable |
| Touch: | 10-Point Capacitive Touch |
| RAM: | 2GB /4GB |
| ROM: | 16GB /32GB |
| Resolution: | 1920*1080 |
| Luminance: | 250cdm2 |
| Highlight: | 21.5 inch Android digital signage,RK3568 touchscreen digital signage,10-point touch digital signage |
| Minimum Order Quantity: | 2 piece |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 7-25days |
| Payment Terms: | T/T |
| Supply Ability: | 150,000 Pieces per Month |
RK3568 Quad core cortex A55
2+16GB /4+32GB
21inches 10-Point capacitive touch
Desktop, wall-mounted
| System | CPU | RK3568 Quad core cortex A55 |
| RAM | 2GB | |
| Internal memory | 16GB | |
| Operation System | Android 11 | |
| Touch | 10-Point capacitive touch | |
| Display | Panel | 21.5"LCD |
| Resolution | 1920*1080 | |
| Viewing angle | 85/85/85/85(L/R/U/D) | |
| Display mode | Normally black | |
| Contrast ratio | 800 | |
| Luminance | 250cdm2 | |
| Aspect Ratio | ,16:9 | |
| Network | WiFi | IEEE 802.11a/b/g/n/ac/ax |
| Ethernet | 100M/1000M ethernet | |
| Bluetooth | Bluetooth 5.4 | |
| Interface | Card slot | SD,Support up to 64GB |
| Mini USB | USB OTG | |
| USB | USB host 2.0*2+USB3.0*1 | |
| USB | USB for serial *2 ( TTL*1,RS-232*1 ) | |
| Power Jack | DC power input | |
| RJ45 | Ethernet interface | |
| HDMI | HDMI output | |
| Earphone | 3.5mm earphone | |
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg/PNG | |
| Other | Speaker | 2*3W |
| 4G Module | Optional | |
| Micphone | Single | |
| VESA | 100x100mm | |
| Language | Multi-language | |
| Working temp | 0--40 degree | |
| Certificates | CE/FCC | |
| Accessories | Adapter | 12V,3A |
| User manual | yes | |
About us :
Our advantage
1. Reliability test
2. Self-hardware development
3. Inspection test
4. More than 500 employees
5. Warehouse
6. Centralized bum-in chamber
7. Dust-free workshop
8. Professional after sales
9. Customer service
10. 13 years' software development experience
FAQ
1. Could you introduce your company and products?
Production and sales of Android tablets, digital signage, advertising machines, and Android all-in-one. Founded in 2008, it is located in Shenzhen, with a factory area of 20,000 square meters and more than 300 employees. We have 14 years of experience in touch screen development and manufacturing to achieve a daily output of 5000pcs and an annual shipment of more than 1 million units worldwide. Our products are sold in more than 30 countries and regions. For more product information, please contact our sales manager online.
2. Can I put my logo on the product?
Yes
3. could you help to develop a new tooling product?
Yes
4. What payment method does your company accept?
We accept most payment methods and give preference to wire transfer, Alipay.
5. What is your product's warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system
certification, China Compulsory Certification(CCC), FCC, CE, RoHS, HDMI, and other certifications, and have been consistently praised by our customers. The warranty period is one year. Our company supports online after-sales service to respond to your questions in time and help you solve the problem as soon as possible.
6. Could you customize the product for me?
Our company supports a customized LOGO, SDK, and PCBA, and also offers pre-installation services. If you are interested in customizing more items, please contact our sales manager.
7. What is your product packaging solution? Is it reliable?
The package is a reliable packaging containing a quality product which has passed inspections and drops tests. We guarantee to deliver your goods in good condition.
