Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
  • Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
  • Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
  • Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
  • Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen
  • Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen

Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen

Model: WL1032T
CPU: RK3288
OS: Android 8.1
Display Resolution: 800x1280
Color: Black&White
Contact Us
5.0M/P
Camera
2GB
RAM
16GB
ROM
2*2W
Speaker
Specifications
Payment & Shipping Terms
Product Description
Specifications
Model: WL1032T
CPU: RK3288
OS: Android 8.1
Display Resolution: 800x1280
Color: Black&White
Camera: 5.0M/P
RAM: 2GB
ROM: 16GB
Speaker: 2*2W
High Light:

L Type Desktop Digital Signage

,

IPS Screen Desktop Digital Signage

,

L Type Free Standing Digital Signage

Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Single item, standard packing (37cm*29cm*17cm, 1.5KG)
Delivery Time: 7-20 work days
Payment Terms: T/T
Supply Ability: 150,000 Pieces per Month
Product Description

L Type Desktop Digital Signage Free Standing 8 Inch Full HD IPS Screen RJ45 NFC



Appearance features:

1. L-shaped appearance: The angle is 70 degrees, which can be easily placed on the desktop without external bracket. Our machine can be moved at any time without damaging the desktop.

2. Ultra-thin body, ultra-narrow bezel, designed to meet the use of a variety of business scenes (optional)

3. Mute non-slip pad at the bottom: Reduce your troubles in use, non-slip and silent, more in line with your actual use needs

4. Radiating hole: The fuselage has its own cooling hole to prevent the heat generated during the operation of the equipment from damaging the body and enhancing the performance and service life of the machine.

5. Optional camera: with camera / without camera / binocular camera (front + rear)

Use Scenarios

1. Library secretary management system

2. Advertising display and evaluation system at checkout counter

3. Place in the hotel room for hotel environmental service evaluation

4. The restaurant queueing service with number called

5. Reservations for meetings at the reception desk

Function

1. High definition IPS screen, capacitive touch

2. Support for pre-installed customer apps

3. Battery optional

4. NFC Partially optional

5. More customizable content consultation please contact us, we will try our best to meet your needs



Software system

Our machine has strong CPU performance (Quad core processor).It can run all kinds of applications smoothly .Different memory configurations are available.

1. Standard configuration:RK3288 2+16G Android 8.1 system;(Android 5.1/ 6.0 /8/9.1/ 10.1 /11 available);

2. High version: RK3399 Android 9.0 (memory available) ( Android 7.1/9.0/10.0/11 available)



Hardware

1. Interface:SD card, USB, serial port, headphone jack, OTG port, RJ45

2. Speaker:2*2W

3. Mic

4. Other customizable





System
CPU
RK3288, Quad-core cortex A17
RAM
2GB
Internal memory
16GB
Operation system
Android 8.1
Touch screen
10-Point capacitive touch




Display
Panel
10" LCD panel
Resolution
800*1280
Display mode
Normally black
Viewing angle
85/85/85/85(L/R/U/D)
Contrast ratio
800
Luminance
250cd/m2
Aspect Ratio
10:16

Network
WiFi
802.11b/g/n
Ethernet
10M/100M
Support BT
BT 4.0




Interface
Card slot
TF, support up to 32GB
USB
USB host
Micro USB
USB OTG Only
USB
USB for serial(RS232 format)
RJ45
Ethernet interface
Power jack
DC power input
Earphone
3.5mm earphone





Other
Speaker
2*2W
Microphone
Single microphone
NFC
Optional, NFC 13.56MHz, ISO 14443A/ISO 14443B/ISO 15693/Mifare classic/Sony felica
Camera
5.0M/P, front camera
Working temp
0--40 degree
Certificates
CE, FCC, RoHS

Accessories
Adapter
Adapter, 12V/1.5A

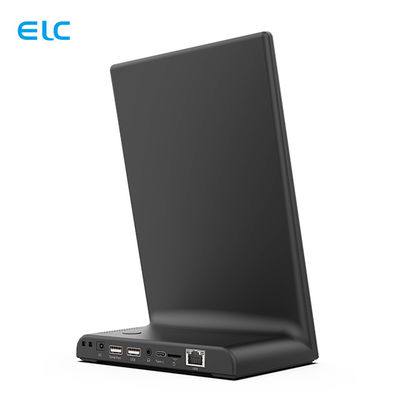

Product photos




Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen 0





Company Profile




About us :

Free Standing L Type Desktop Digital Signage With 8 Inch Full HD IPS Screen 1

1. Reliability test

2. Self-hardware development

3. Inspection test

4. More than 500 employees

5. Warehouse

6. Centralized bum-in chamber

7. Dust-free workshop

8. Professional after sales

9. Customer service

10. 13 years' software development experience



FAQ




1. Could you customize the product for me?
Our company supports a customized LOGO, SDK and PCBA, and also offer pre-installation services. If you are interested in customizing more items, please contact our sales manager.


2. What payment method does your company accept?
We accept most payment methods and give preference to wire transfer, Alipay.


3. What is your modes of transportation in logistics? What’s the delivery charge and delivery date?
Our mode of transportation mainly include express, sea and air shipments, and the delivery charge is calculated based on your address and the product quantity. All products can be delivered within 7-10 days if we have stock. If you have any customization requirements, please contact us for confirmation. Our strong R&D team can meet your special needs in time.



4. Could you introduce your company and products?
Production and sales of Android tablets, digital signage, advertising machines, and Android all-in-one. Founded in 2008, it is located in Shenzhen, with a factory area of 10,000 square meters and more than 300 employees. We have 13 years of experience in touch screen development and manufacturing to achieve a daily output of 5000pcs and an annual shipment of more than 1 million units worldwide. Our products are sold in more than 30 countries and regions. For more product information, please contact our sales manager online.
