Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
  • Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
  • Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
  • Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
  • Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
  • Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
  • Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display
  • Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display

Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display

Color: White/Black
Input Voltage: 12V/1.5A
Panel Size: 8''
Ram: 2GB
Rom: 16GB
Contact Us
Capacitive Touch
Touch Screen
Desktop
Installation
1280*800
Resolution
Rockchip 3288
Cpu
Specifications
Payment & Shipping Terms
Product Description
Specifications
Color: White/Black
Input Voltage: 12V/1.5A
Panel Size: 8''
Ram: 2GB
Rom: 16GB
Touch Screen: Capacitive Touch
Installation: Desktop
Resolution: 1280*800
Cpu: Rockchip 3288
High Light:

Capacitive Touch LCD Signage Display

,

Rockchip RK3288 LCD Signage Display

,

L Shape Digital Signage LCD Display

Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: white color box, then into master Carton box
Delivery Time: 3-35 days
Payment Terms: T/T
Supply Ability: 4000pcs per day
Product Description

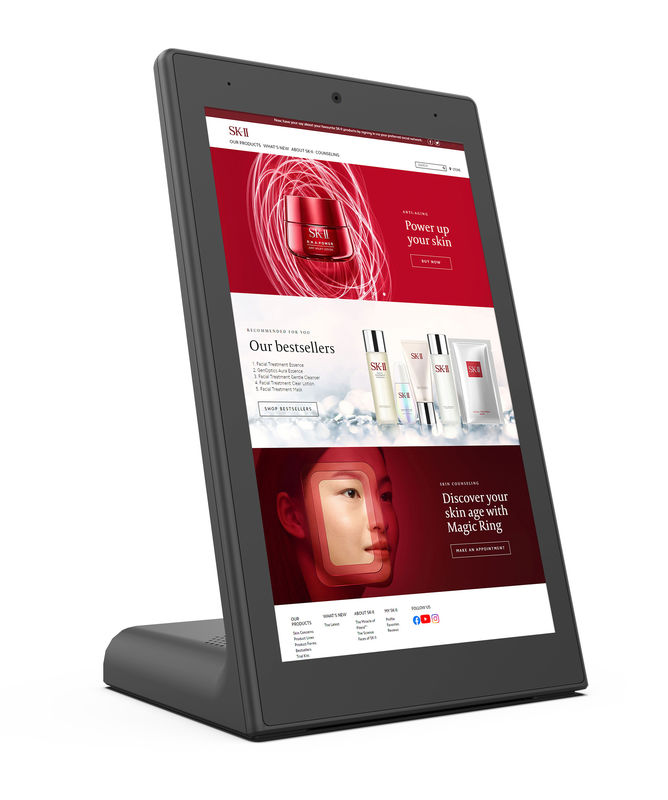

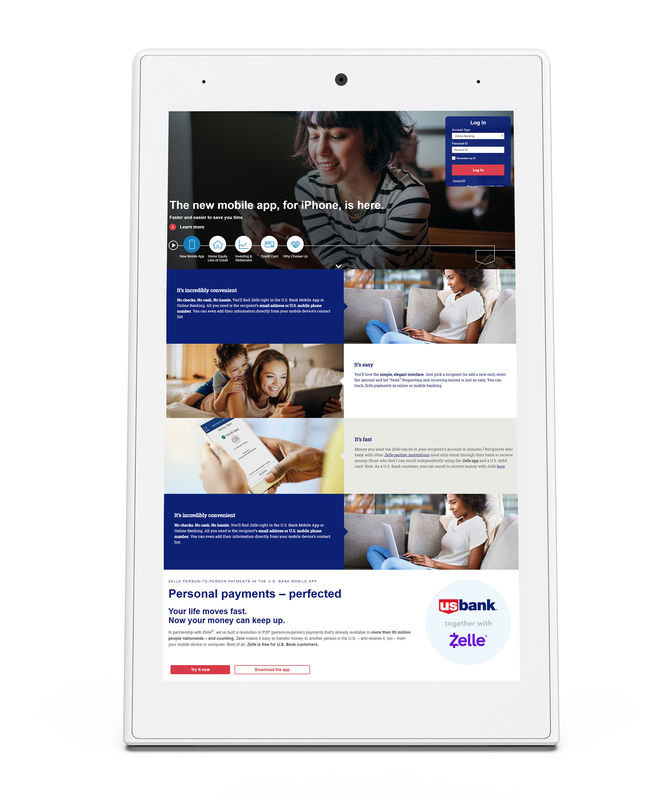

L Shape 10 Point Capacitive touch Android Tablet Indoor Signage LCD Display Rockchip RK3288





8 inch Touch screen reception digital signage with Android 10 system



Use Scenarios

  1. Evaluation of bankind services

  2. Office of government affairs hall

  3. Library secretary management system

  4. Advertising display and evaluation system at checkout counter

  5. Barbershop advertising display

  6. Customer Satisfaction Survey

  7. Place in the hotel room for hotel environmental service evaluation

  8. The restaurant queueing service with number called

  9. Reservations for meetings at the reception desk



Product Features:

1. 8 inches L-shape, 10.1inch optional

2. Vertical desktop shape, front camera, autofocus

3. 10-point Touch screen

4. White and Black optional

5. Android 10 system / android 8



Product Specification:



System CPU RK3288 Quad-core cortex A17
RAM 2GB
Internal memory 16GB
Operation system Android 8.1
  Touch screen capacitive touch
Display Panel 8" LCD
Resolution 800*1280
Display mode Normally black
Viewing angle 85/85/85/85 (L/R/U/D)
Contrast ratio 800 :1
Luminance 250cd/m2
Aspect Ratio ,16:10
Network WiFi 802.11b/g/n
Ethernet 10M/100M/1000M
Buletooth Bluetooth 4.0
Interface Card slot TF,support up to 32GB
USB USB for serial (RS232 format)
USB USB host 2.0
Type-c USB OTG Onely
Power jack DC power input
Earphone 3.5mm earphone output
RJ45 Ethernet interface
Media play Video format MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 4K
Audio format MP3/WMA/AAC etc.
Photo jpeg
Other NFC Optional ,NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
Microphone Dual microphone
Speaker 2*2W
Camera 5.0M/P, front camera
Language Multi-language
Accessories Adapter Adapter,12V/1.5A
User manual yes










Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display 0



Rockchip RK3288 L Shape Capacitive Touch LCD Signage Display 1



FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory/manufacturer with 300 staff and 20,000 square meters workshop.
2. Q: Are all your products designed and manufactured by yourselves?
A: Yes, we design all the hardware and software, tooling by ourselves
3. Q: What kind of inspections you can provide?
A: We have strict tests from material purchasing to product assembling and packaging, to guarantee all digital signage products are in perfect condition before delivery to customers





Our services:
1. Customized designs are available, OEM/ODM orders are welcome
2. 12-month warranty for our products
3. Inquiries replied within 24 working hours
4. Two R&D teams, technical support provided with a quick response



* ELC has an area of 20,000 square meters factory and more than 500 employees to make daily output reach 5,000pcs. Over 100 engineers and designers to provide ODM and OEM service. ELC has 10 dust-free production lines, each of which is strictly regulated.
* Product Series:Digital signage, Tablet PC, Conference room tablet, L shape tablet, Healthcare tablet, kiosk etc.
* Size: 7"/ 8"/ 10.1"/ 13.3"/ 15.6"/ 17.3"/ 18.5"/ 21.5"/ 24"/ 27"/ 32"/ 43"/ 55"/ 65"
