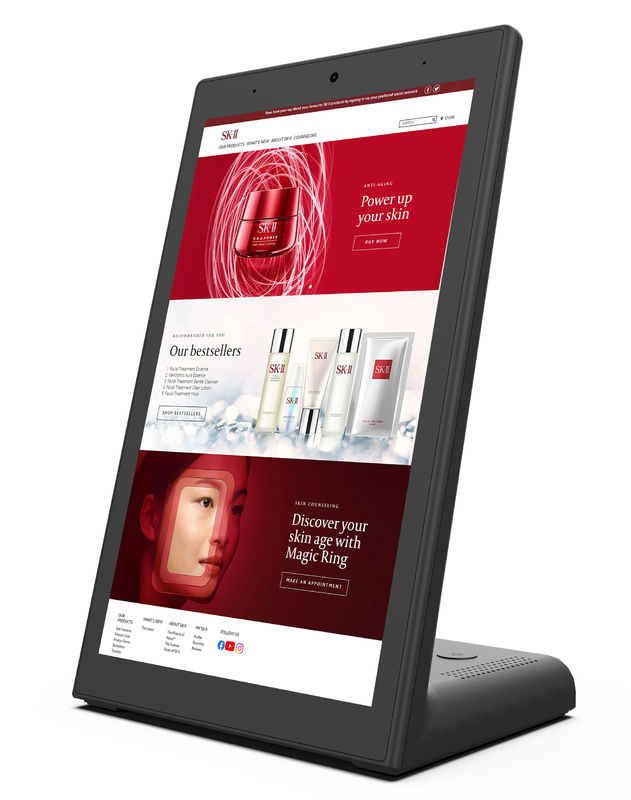

L Shape 10.1'' RK3568 Vertical Digital Signage 10 Points Capacitive Touch

CPU:	RK3568
Touch:	10 Points Capacitive Touch
Camera:	2MP Front Camera
NFC:	13.56MHz
PoE:	Power Over Ethernet

10.1 Inch

Size

White/Black Optional

Color

Vertical With Stand

Design

Charging Interface

Specifications

Payment & Shipping Terms

Product Description

Specifications

CPU:	RK3568
Touch:	10 Points Capacitive Touch
Camera:	2MP Front Camera
NFC:	13.56MHz
PoE:	Power Over Ethernet
Size:	10.1 Inch
Color:	White/Black Optional
Design:	Vertical With Stand
Charging Interface:	DC
Warranty:	1 Year
Frame Material:	Plastic
Scenarios:	Commercial Use For Restaurants, Hotels
RAM:	2GB
ROM:	16GB
Processor Type:	Quad Core
Panel Brightness:	300nits
Panel Resolution:	1280*800
USB Port:	Type-C
Android OS:	11
Highlight:	RK3568 Vertical Digital Signage , Touch L Shape Vertical Digital Signage , L Shape digital signage touch display

Payment & Shipping Terms

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	7-25 dyas
Payment Terms:	T/T
Supply Ability:	2000pcs per day

Product Description

Touch L Shape 10.1'' RK3128 Restaurant Menu Digital Signage

10.1'' 10 Points Capacitive Touch Screen RK3128 Quad Core Vertical L-Shaped Android 6.0 tablet, Type-C Digital Signage for Commercial use for restaurants, hotels, PoE/NFC optional

Product Specification:

System	CPU	RK3568
	RAM	2GB
	Internal memory	16GB
	Operation system	Android 11
	Touch screen	10-Point capacitive touch
Display	Panel	10.1 "LCD panel
	Resolution	1280*800
	viewing angle	85/85/85/85(L/R/U/D)
	Contrast ratio	800
	Luminance	300cdm2
	Aspect Ratio	16:9
Network	WiFi	802.11b/g/n
	Ethernet	100M/1000M
	Bluetooth	Bluetooth 4.0
Interface	Card slot	SD,Support up to 32GB
	USB Device	Mini USB OTG
	USB Host	USB Host 2.0/Type-C
	Power Jack	DC power input
	HDMI	HDMI output
	RJ45	RJ45 PoE
	Earphone	3.5mm earphone
Media plays	Video format	MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc., support up to 1080p
	Audio format	MP3/WMA/AAC etc
	Photo	jpeg
Accessories	Speaker	2*3W
	Camera	2MP Front Camera
	Micphone	yes
	Language	Multi-language
Adapter	Adapter	12V/1.5A
Adapter	User manual	yes

L Shape 10.1'' RK3568 Vertical Digital Signage 10 Points Capacitive Touch 0

Product Product features:

OS: Android 8.1
Various input-output ports: DC in, HDMI output, mini USB OTG,USB 2.0 host, 3.5mm audio jack, Serial port, RJ45(PoE), SD card slot, Type-C
Connection: supports Wi-Fi, Bluetooth 4.0, RJ45, PoE optional, NFC, RFID
Built for 24/7 use: strong durability supported to present business messaging 24/7
Full HD image: class-A LCD panel, HD image
Panel Resolution: 1280*800

Product Drawing:

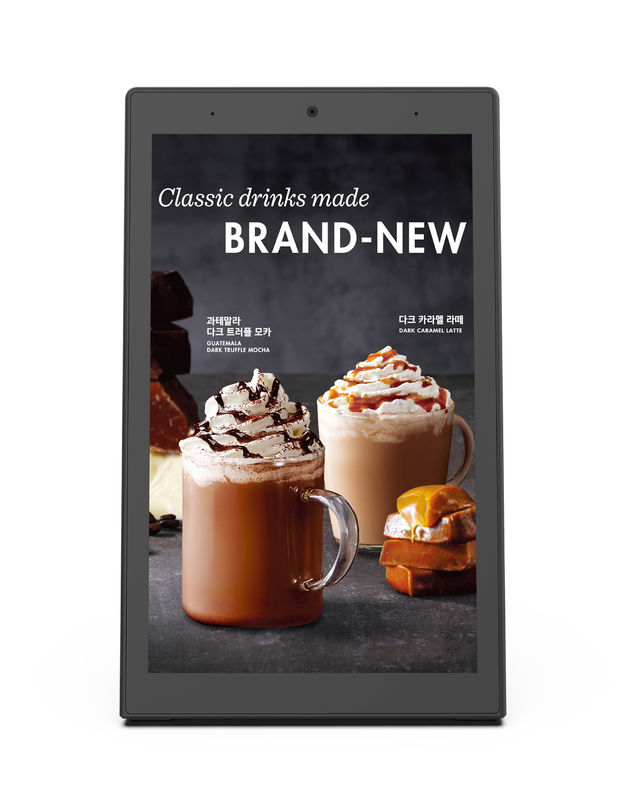

L Shape 10.1'' RK3568 Vertical Digital Signage 10 Points Capacitive Touch 2

Our services:
1. Customized designs are available, OEM/ODM orders are welcome
2. 12-month warranty for our products
3. Inquiries replied within 24 working hours
4. Two R&D teams, technical support provided with a quick response

Applicable Scenario:

This Android L-Shaped Digital Signage is widely used for food catering and ordering in hotels, restaurants, airports cantins, etc.

L Shape 10.1'' RK3568 Vertical Digital Signage 10 Points Capacitive Touch 3
