Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
  • Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
  • Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
  • Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
  • Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1
  • Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1

Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1

Model: WF1562T
CPU: RK3288
System: Android 8.1
Touch Screen: 15.6 Inch Capacitive Touch Screen
Brightness: 250cd/m2
Contact Us
2GB
Ram
16GB
Rom
5.0M/P
Camera
2*2W
Speaker
Specifications
Payment & Shipping Terms
Product Description
Specifications
Model: WF1562T
CPU: RK3288
System: Android 8.1
Touch Screen: 15.6 Inch Capacitive Touch Screen
Brightness: 250cd/m2
Ram: 2GB
Rom: 16GB
Camera: 5.0M/P
Speaker: 2*2W
High Light:

Rockchip RK3288 Wall Mounted LCD Panel

,

Android 8.1 Wall Mounted LCD Panel

,

Android 8.1 Touch Screen LCD Panel

Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: $165 - $183
Packaging Details: Single item, standard packing (52cm*14cm*37cm, 3KG)
Delivery Time: 7-20 work days
Payment Terms: T/T
Supply Ability: 150,000 Pieces per Month
Product Description

Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1




15.6 Inch Digital Signage Wall Mount Capacitive Touch Screen Android 8.1



Appearance characteristics

1. Wall Mount: Bracket is optional for desktop placement of the device;Equipped with wall mounting bracket, support portal or landscape installation.

2. Original A + screen:Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution

3. Lightweight fuselage: easy to install

4. Cooling hole: The fuselage has its own cooling holes to ensure that the machine can continue to operate, effectively reduce the damage caused by high temperature to the machine, and greatly prolong the service life of the machine.

Use Scenarios

1. Supermarket advertising: It can be used for shops to display their own product details, prices and other information, as well as advertising in the elevator, and so on

2. Medical treatment: It can be used for doctor information display screen at the entrance of the clinic, doctor information display in the corridor, and registration display screen

3. Gym: treadmill exercise, heart rate, speed and other information display, exercise information record display, rowing machine display, strength, speed, boxing, yoga and other tutorial video play

4. Catering industry: It can be used for a variety of small, medium and large milk tea shop product information display, catering advertising, food production process video play, corporate chain example display

Software system

Our machine has strong CPU performance (Quad core processor).It can run all kings of applications smoothly .Different memory configurations are available.

1. Standard configuration:RK3288 2+16G Android 8.1 system;(Android 5.1/ 6.0 /8/9.1/ 10.1 /11 available);

2. High version: RK3399 Android 9.0 (memory available) ( Android 7.1/9.0/10.0/11 available)

3. Untouchable version optional

Hardware interface:

1. Interface: sd card, usb, serial port, headphone jack, OTG port, rj45

2. Speaker:2*2W

3. Mic

4. POE part is optional








System
CPU
RK3288, Quad-core cortex A17
RAM
2GB
Internal memory
16GB
Operation system
Android 5.1/6.0/8.1/9.0
Touch screen
10-Point capacitive touch







Display
Panel
15.6" LCD panel
Resolution
1920*1080
Display mode
Normally black
Viewing angle
85/85/85/85(L/R/U/D)
Contrast ratio
800
Luminance
250cd/m2
Aspect Ratio
16:9



Network
WiFi
802.11b/g/n
Ethernet
10M/100M ethernet
Support BT
BT 4.0






Interface
Card slot
SD card
USB
USB host*3
USB
Mini USB OTG
RJ45
Ethernet interface
Power jack
DC power input
Earphone
3.5mm earphone



Media play
Video format
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
Audio format
MP3/WMA/AAC etc.
jpeg








Other
VESA
100x100mm
Speaker
2*2W
Microphone
yes
Camera
Front camera, 2.0M/P
Working temp
0--40 degree
Certificates
CE, FCC, RoHS
Language
Multi-language

Accessories
Adapter
Adapter, 12V/2A
User manual
yes





Product photos

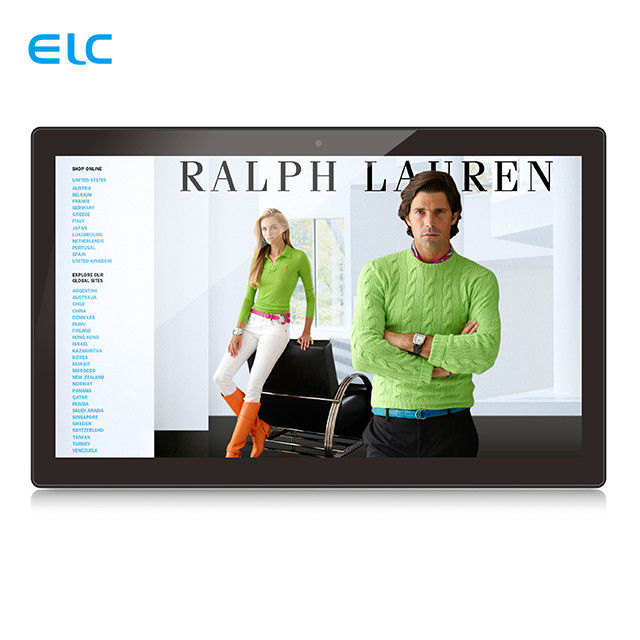

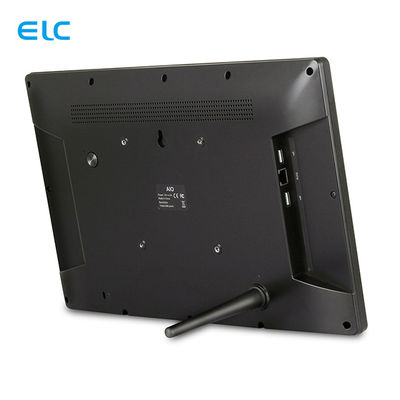

Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1 0

Company Profile


Rockchip RK3288 Wall Mounted LCD Panel Capacitive Touch Screen Android 8.1 1

1. 06.2019 Infocomm in USA

2. 03.2019 DSE in the U.S.

3. 02.2019 ISE in Netherlands



FAQ


1. What is your product packaging solution? Is it reliable?
The package is a reliable packaging contains the quality product which has passed inspections and drop test. We guarantee to deliver your goods in good condition.



2. What is the MOQ on your product?
We can supply 1 unit for a sample order. There is a small quantity in stock. If you need a discount for bulk orders, please feel free to contact our online sales manager.

3. What payment method does your company accept?
We accept most payment methods and give preference to wire transfer, Alipay.



4. What is your products warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system
certification, China Compulsory Certification(CCC), FCC, CE, RoHS, HDMI and other certifications, and have been consistently praised by our customers. The warranty period is one year. Our company supports online after-sales service to response your questions in time and help you solve the problem as soon as possible.
