| CPU: | RK3568 Quad Core Cortex A55 |
|---|---|
| Touch: | 10-Point Capacitive Touch |
| Camera: | 5MP Front Camera |
| NFC: | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare Classic/Sony Felica |
| Size: | 10.1 Inch |
| CPU: | RK3568 Quad Core Cortex A55 |
|---|---|
| Touch: | 10-Point Capacitive Touch |
| Camera: | 5MP Front Camera |
| NFC: | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare Classic/Sony Felica |
| Size: | 10.1 Inch |
| Design: | Vertical With Stand |
| Charging Interface: | DC |
| Color: | White/Black Optional |
| Warranty: | 1 Year |
| Frame Material: | Plastic |
| Scenarios: | Commercial Use For Restaurants, Hotels |
| RAM: | 2GB |
| ROM: | 16GB |
| Processor Type: | Quad Core |
| Panel Brightness: | 250nits |
| Panel Resolution: | 800*1280 |
| USB Port: | Type-C |
| Android: | Android 11 |
| Highlight: | 10 inch L shape Android tablet,capacitive touch screen tablet,POE RJ45 NFC tablet |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 7-25 dyas |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per day |
| System | CPU | RK3568 Quad core cortex A55 | |
| RAM | 2GB | ||
| Internal memory | 16GB | ||
| Operation system | Android 11 | ||
| Touch screen | 10-Point capacitive touch | ||
| Display | Panel | 10.1"LCD | |
| Resolution | 800*1280 | ||
| Display mode | Normally black | ||
| Viewing angle | 85/85/85/85 (L/R/U/D) | ||
| Contrast ratio | 800 | ||
| Luminance | 250cd/m2 | ||
| Aspect Ratio | 10:16 | ||
| Network | WiFi | IEEE 802.11 a/b/g/n/ac/ax | |
| Ethernet | 10M/100M/1000M | ||
| Buletooth | Bluetooth 5.4 | ||
| Interface | Card slot | TF,support up to 64GB | |
| USB | USB for serial (TTL Level ) ,Optional USB host | ||
| USB | USB host 3.0 | ||
| Type-c | Support USB OTG only | ||
| Power jack | DC power input | ||
| Earphone | 3.5mm earphone output | ||
| RJ45 | Ethernet interface | ||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K | |
| Audio format | MP3/WMA/AAC etc. | ||
| Photo | jpeg/png | ||
| NFC | Optional ,NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica | ||
| Other | Microphone | Standard single microphone , Optional dual microphone | |
| Speaker | 2*2W | ||
| Camera | Routine angle 5.0MP | ||
| Language | Multi-language | ||
| Working temp | 0--40degree | ||
| Certificates | ce/fcc | ||
| Accessories | Adapter | Adapter,12V/1.5A | |
| User manual | yes | ||

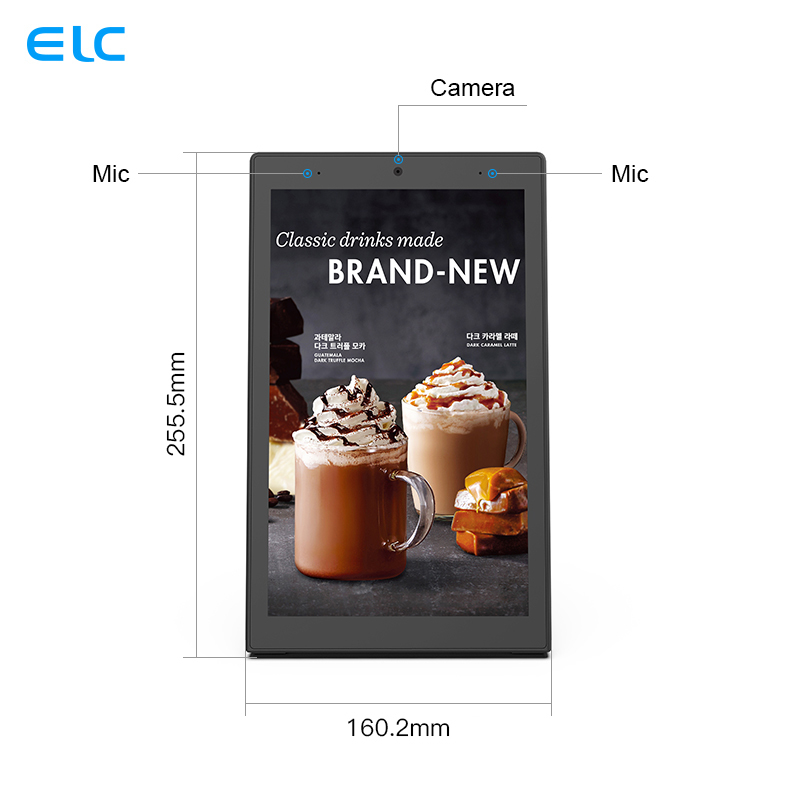

Product Drawing:
Our services:
1. Customized designs are available, OEM/ODM orders are welcome
2. 12-month warranty for our products
3. Inquiries replied within 24 working hours
4. Two R&D teams, technical support provided with a quick response
This Android L-Shaped Digital Signage is widely used for food catering and ordering in hotels, restaurants, airports cantins, etc.
