| Model: | NW2495T |
|---|---|
| Panel: | In-cell Screen |
| Adjustable: | Rotate/Swivel/Tilt/Height/movable |
| OS: | Android 13 |
| CPU: | RK3588S2 Quad Core Cortex A55+Quad Core Cortex A76 |
| Model: | NW2495T |
|---|---|
| Panel: | In-cell Screen |
| Adjustable: | Rotate/Swivel/Tilt/Height/movable |
| OS: | Android 13 |
| CPU: | RK3588S2 Quad Core Cortex A55+Quad Core Cortex A76 |
| RAM: | 4GB /8GB |
| ROM: | 32GB /64GB |
| Highlight: | 23.8 inch Android digital signage,In-cell touch screen digital signage,Android 13 commercial display |
| Minimum Order Quantity: | 2 piece |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 7-25days |
| Payment Terms: | T/T |
| Supply Ability: | 150,000 Pieces per Month |
RK3588 S2
4+32GB /8+64GB
24inches in-cell touch screen
Desktop, wall-mounted
| System | CPU | RK3588S2 Quad core cortex A55+Quad core cortex A76 | |
| RAM | 4GB /Optional 8GB | ||
| Internal memory | 32GB /Optional 64GB | ||
| Operation system | Android 13 | ||
| Display | Panel Size | 23.8"LCD | |
| Resolution | 1920*1080 | ||
| Display Colors | 16.7M Colors | ||
| Color Gamut | 72% NTSC | ||
| Viewing angle | R/L 89/89, U/D 89/89 | ||
| Display mode | Normally black | ||
| Contrast ratio | 1000:1 | ||
| Response Time | 9ms | ||
| Back-light Type | Eled | ||
| Luminance | 250cdm2 | ||
| Aspect Ratio | ,16:9 | ||
| Touch | Model Type | In cell touch | |
| Number of points | 10-Point | ||
| Interface for touch | HID-USB | ||
| Network | WiFi | IEEE 802.11b/g/n/a/ac/ax (wifi 6),with Mu-MIMO standard | |
| Bluetooth | Bluetooth 5.3 | ||
| Ethernet | 10M/100M/1000M | ||
| Interface | RJ45 | Ethernet interface | |
| USB | USB 2.0 Host | ||
| USB | USB 3.0 Host | ||
| Type_C | Full Function ( Except for charging function ) | ||
| HDMI IN |
Support 800*600,1024*768,1280*720,1280*800,1280*1024, 1366*768,1600*900,1920*1080,3840*2160, etc |
||
| Power Jack | DC power input | ||
| Media plays | Video format |
MPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8, VP9,MVC,AV1, etc., support up to 8K@60fps |
|
| Audio format | MP3/WMA/AAC/WAV/OGG, etc | ||
| Photo | JPEG/PNG/GIF,etc | ||
| Other | Product Colors | White/Black | |

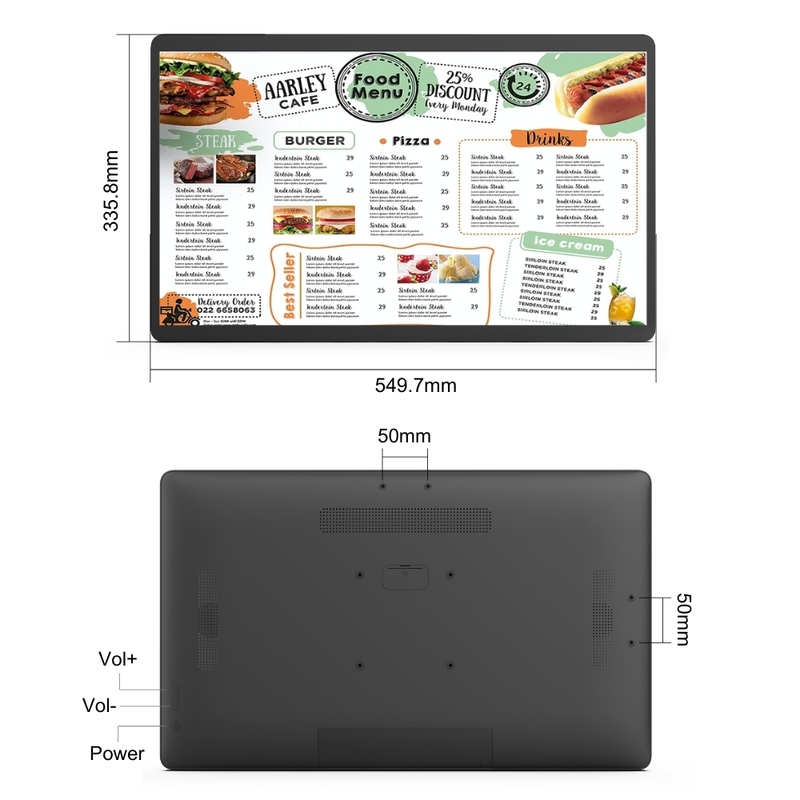

| VESA | 100mm*100mm | ||
| Button | Power/Vol+/Vol- | ||
| G-sensor | Support | ||
| Speaker | 4Ω*5W*2 | ||
| Microphone | Standard dual Microphone , Support noise reduction and echo cancellation | ||
| NFC | Optional , 13.56MHz,ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards |
||
| Camera | Optional External USB type camera ( vertical portrait , 8.0MP ) | ||
| Language | Multi-language | ||
| POE | Optional (IEEE802.3bt, up to 60W ) | ||
| Certificates | CCC/CE/FCC | ||
| Working Surrounding | Working Temperature | 0℃---40℃ | |
| Storage Temperature | -20℃---60℃ | ||
| Working Humidity | 20~80%RH | ||
| Storage Humidity | 10~95%RH | ||
| Accessories | Adapter | 12V/4A | |
| AC Cable | L=1.5m | ||
| User manual | *1 | ||
| Remote | Optional*1 | ||
Company Profile
About us :
Our advantage
1. Reliability test
2. Self-hardware development
3. Inspection test
4. More than 500 employees
5. Warehouse
6. Centralized bum-in chamber
7. Dust-free workshop
8. Professional after sales
9. Customer service
10. 13 years' software development experience
FAQ
1. Could you introduce your company and products?
Production and sales of Android tablets, digital signage, advertising machines, and Android all-in-one. Founded in 2008, it is located in Shenzhen, with a factory area of 20,000 square meters and more than 300 employees. We have 14 years of experience in touch screen development and manufacturing to achieve a daily output of 5000pcs and an annual shipment of more than 1 million units worldwide. Our products are sold in more than 30 countries and regions. For more product information, please contact our sales manager online.
2. Can I put my logo on the product?
Yes
3. could you help to develop a new tooling product?
Yes
4. What payment method does your company accept?
We accept most payment methods and give preference to wire transfer, Alipay.
5. What is your product's warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system
certification, China Compulsory Certification(CCC), FCC, CE, RoHS, HDMI, and other certifications, and have been consistently praised by our customers. The warranty period is one year. Our company supports online after-sales service to respond to your questions in time and help you solve the problem as soon as possible.
6. Could you customize the product for me?
Our company supports a customized LOGO, SDK, and PCBA, and also offers pre-installation services. If you are interested in customizing more items, please contact our sales manager.
7. What is your product packaging solution? Is it reliable?
The package is a reliable packaging containing a quality product which has passed inspections and drops tests. We guarantee to deliver your goods in good condition.
