Capactive Touch Screen Meeting Room Digital Signage With PoE/NFC/RFID Based
Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based
Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based
Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based
Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based
  • Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based
  • Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based
  • Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based
  • Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based

Capactive Touch Screen Meeting Room Digital Signage With PoE/NFC/RFID Based

CPU: RK3288 Quad Core
Touch: 10 Points Capacitive Touch
Camera: 2MP Wide View Front Camera
NFC: 13.56MHz
RFID: 125Khz
Contact Us
Power Over Ethernet
PoE
2*3W
Speakers
Specifications
Payment & Shipping Terms
Product Description
Specifications
CPU: RK3288 Quad Core
Touch: 10 Points Capacitive Touch
Camera: 2MP Wide View Front Camera
NFC: 13.56MHz
RFID: 125Khz
PoE: Power Over Ethernet
Speakers: 2*3W
High Light:

conference room digital signage

,

digital signage meeting room booking

Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 7-25 dyas
Payment Terms: T/T
Supply Ability: 2000pcs per day
Product Description

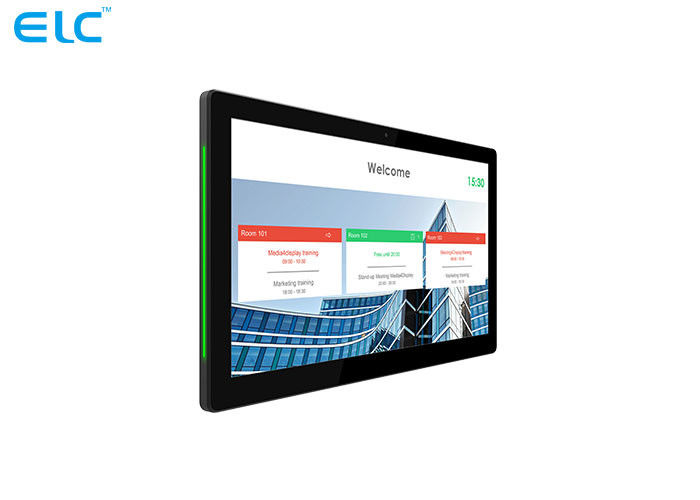

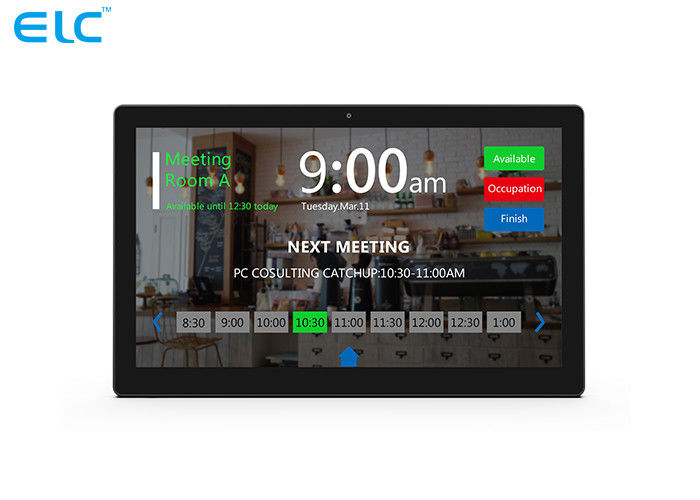

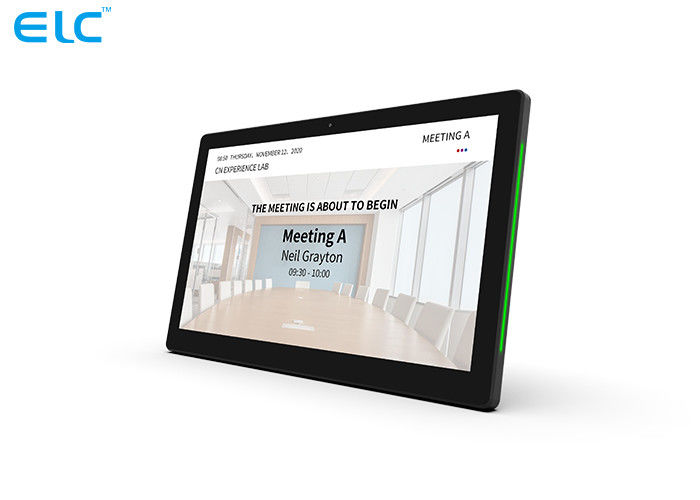

15.6''  Capactive Touch Screen Digital Signage for meeting room booking with PoE/NFC/RFID based on RK3288 solution with Android 8.1 OS and Muilt-color LED Light bars to show the room status



Product Product features:

  1. OS: Android 8.1
  2. Various input-output ports: DC in, HDMI output, mini USB OTG,USB 2.0 host, 3.5mm audio jack, Serial port, RJ45(PoE), SD card slot
  3. Connection: supports Wi-Fi, Bluetooth 4.0, RJ45, PoE optional, NFC, RFID
  4. Built for 24/7 use: strong durability supported to present business messaging 24/7
  5. Full HD image: class-A LCD panel, HD image

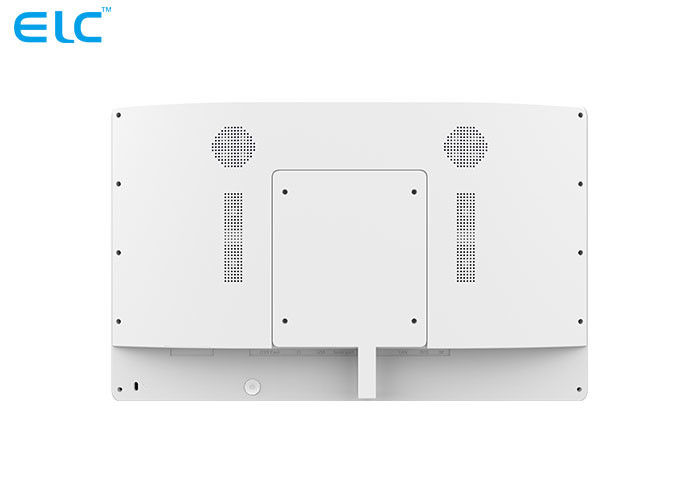

Product Drawing and I/O Ports:



Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based 0





Product Specification:









   System

  CPU

  RK3399

  RAM   2GB
  Internal memory   16GB
  Operation system   Android 7.1/9.0
  Touch screen   10-Point capacitive touch







   Display

  Panel   15.6 "LCD panel
  Resolution   1920*1080
  viewing angle   85/85/85/85(L/R/U/D)
  Contrast ratio   800
  Luminance   250cdm2
  Aspect Ratio   16:9





   Network

  WiFi   802.11b/g/n
  Ethernet   100M/1000M
  Bluetooth   Bluetooth 4.0







   Interface

  Card slot   SD,Support up to 32GB
  USB Device   Mini USB OTG
  USB Host    USB Host 2.0
  Power Jack   DC power input
  HDMI   HDMI output
  RJ45   RJ45 PoE
  Earphone   3.5mm earphone





   Media plays

   Video format

  MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,

  support up to 1080p

  Audio format   MP3/WMA/AAC etc
  Photo   jpeg







   Accessories

  Speaker   2*3W
  Camera   2MP Front Camera
  Micphone   yes
  Language   Multi-language

   Adapter

  Adapter  12V/2A
  User manual   yes





Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based 1







Our services:
1. Customized designs are available, OEM/ODM orders are welcome
2. 12-month warranty for our products
3. Inquiries replied within 24 working hours
4. Two R&D teams, technical support provided with a quick response


FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory/manufacturer with 300 staff and 20,000 squre meters workshop.
2. Q: Are all your products designed and manufactured by yourselves?
A: Yes, we design all the hardware and software, tooling by ourselves
3. Q: What kind of inspections you can provide?
A: We have strict tests from material purchasing to product assembling and packaging, to guarantee all digital signage products are in perfect condition before delivery to customers



Applicable Scenario:

This Series is widely used for meeting room booking in hotels, schools, companies


Capactive Touch Screen  Meeting Room Digital Signage  With PoE/NFC/RFID Based 2
