15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
  • 15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
  • 15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
  • 15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
  • 15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor
  • 15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor

15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor

Model: WF1522T
CPU: RK3288
OS: Android 8.1
Screen Size: 15.6 Inch
Type: Wall Mount
Contact Us
2GB
RAM
16GB
ROM
5.0M/P
Camera
2*2W
Speaker
Specifications
Payment & Shipping Terms
Product Description
Specifications
Model: WF1522T
CPU: RK3288
OS: Android 8.1
Screen Size: 15.6 Inch
Type: Wall Mount
RAM: 2GB
ROM: 16GB
Camera: 5.0M/P
Speaker: 2*2W
High Light:

Android 8.1 Wall Mount LCD Display

,

RJ45 Wall Mount LCD Display

,

NFC POE LCD Monitor

Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Single item, standard packing (52cm*12cm*35cm, 2.7KG)
Delivery Time: 7-20 work days
Payment Terms: T/T
Supply Ability: 150,000 Pieces per Month
Product Description

 15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor


Appearance characteristics

1.Wall Mount: Bracket is optional for desktop placement of the device;Equipped with wall mounting bracket, support portal or landscape installation.

2. Original A + screen:Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution

Cooling hole: The fuselage has its own cooling holes to ensure that the machine can continue to operate, effectively reduce the damage caused by high temperature to the machine, and greatly prolong the service life of the machine.

Use Scenarios

1. Supermarket advertising: It can be used for shops to display their own product details, prices and other information, as well as advertising in the elevator, and so on

2. Medical treatment: It can be used for doctor information display screen at the entrance of the clinic, doctor information display in the corridor, and registration display screenCatering industry: It can be used for a variety of small, medium and large milk tea shop product information display, catering advertising, food production process video play, corporate chain example display

Software system

Our machine has strong CPU performance (Quad core processor).It can run all kings of applications smoothly .Different memory configurations are available.

1. Standard configuration:RK3288 2+16G Android 8.1 system;(Android 5.1/ 6.0 /8/9.1/ 10.1 /11 available);

2. High version: RK3399 Android 9.0 (memory available) ( Android 7.1/9.0/10.0/11 available)

3. Untouchable version optional

Hardware interface:

1. Interface: sd card, usb, serial port, headphone jack, OTG port, rj45

2. Speaker:2*2W

3. Mic

4. POE part is optional





System
CPU
RK3288, Quad-core cortex A17
RAM
2GB
Internal memory
16GB
Operation system
Android 8.1
Touch screen
10-Point capacitive touch




Display
Panel
15.6" LCD panel
Resolution
1920*1080
Display mode
Normally black
Viewing angle
85/85/85/85(L/R/U/D)
Contrast ratio
800
Luminance
250cd/m2
Aspect Ratio
16:9

Network
WiFi
802.11b/g/n
Ethernet
100M/1000M ethernet
Support BT
BT 4.0




Interface
Card slot
TF card
USB
USB host*2
USB
USB slave
USB
USB for serial(RS232 format)
RJ45
Ethernet interface (POE function optional IEEE802.3at, POE+, class 4, 25.5W )
Power jack
DC power input
Earphone
3.5mm earphone + Micphone


Media play
Video format
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
Audio format
MP3/WMA/AAC etc.
jpeg






Other
VESA
100x100mm
NFC
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
4G LTE
Optional
Speaker
2*2W
Microphone
yes
Camera
Front camera, 2.0M/P
Working temp
0--40 degree
Certificates
CE, FCC, RoHS
Language
Multi-language

Accessories
Adapter
Adapter, 12V/2A
User manual
yes

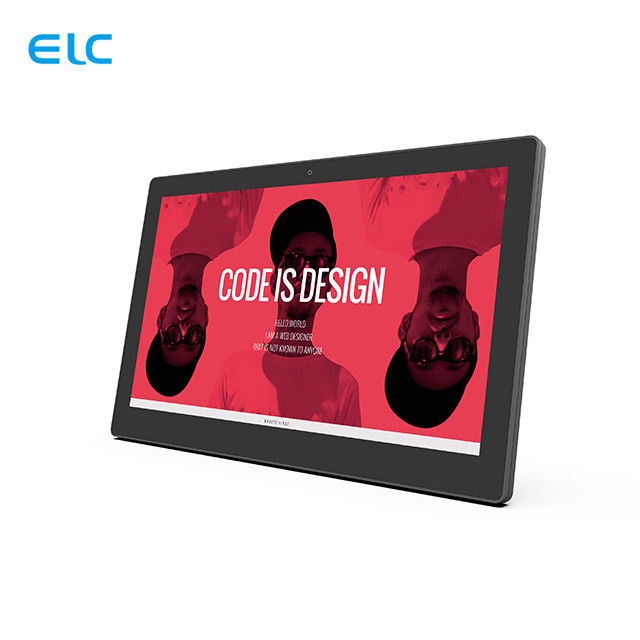

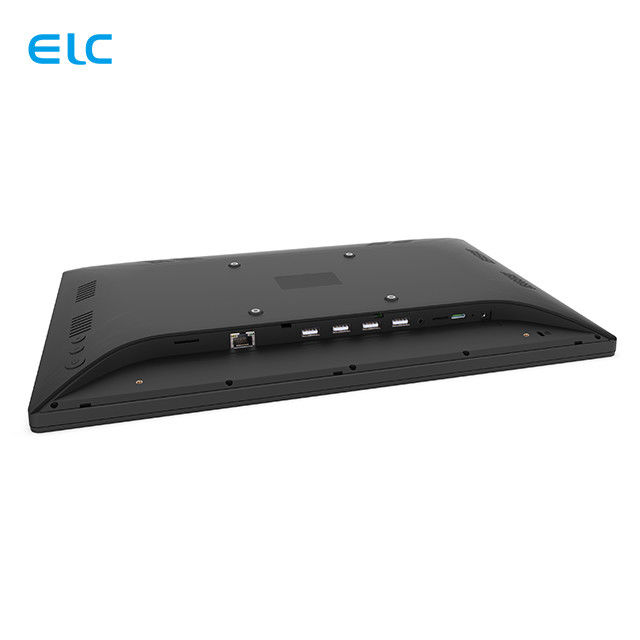

Product photos


15.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor 015.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor 115.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor 215.6 Inch Android 8.1 Wall Mount LCD Display RJ45 NFC POE LCD Monitor 3





FAQ




1. Could you introduce your company and products?
Production and sales of Android tablets, digital signage, advertising machines, and Android all-in-one. Founded in 2008, it is located in Shenzhen, with a factory area of 10,000 square meters and more than 300 employees. We have 13 years of experience in touch screen development and manufacturing to achieve a daily output of 5000pcs and an annual shipment of more than 1 million units worldwide. Our products are sold in more than 30 countries and regions. For more product information, please contact our sales manager online.

2. What is the MOQ on your product?
We can supply 1 unit for a sample order. There is a small quantity in stock. If you need a discount for bulk orders, please feel free to contact our online sales manager.

3. What is your modes of transportation in logistics? What’s the delivery charge and delivery date?
Our mode of transportation mainly include express, sea and air shipments, and the delivery charge is calculated based on your address and the product quantity. All products can be delivered within 7-10 days if we have stock. If you have any customization requirements, please contact us for confirmation. Our strong R&D team can meet your special needs in time.

4. What is your products warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system
certification, China Compulsory Certification(CCC), FCC, CE, RoHS, HDMI and other certifications, and have been consistently praised by our customers. The warranty period is one year. Our company supports online after-sales service to response your questions in time and help you solve the problem as soon as possible.
