Slim Dual Screen Digital Signage Wall Mount Indoor Retail Store Android advertising display
Slim Dual Screen Elevator Digital Signage Wall Mount Indoor Advertising Solution
Appearance characteristics
1. Dual screen: The body is divided into upper and lower screens, which can display the same or different content at the same time.

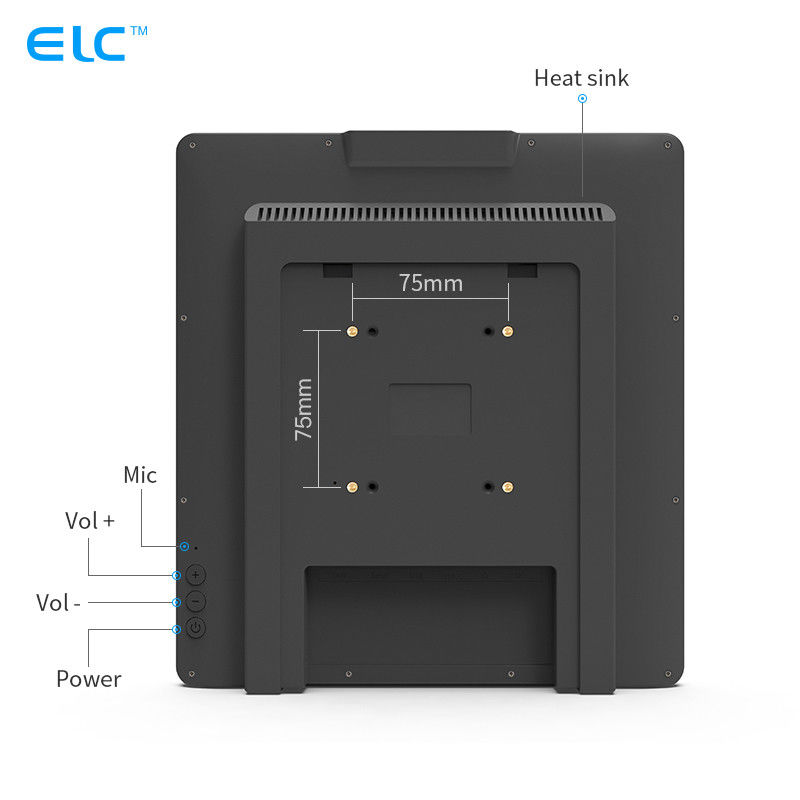

2. Easy to install: The body comes with a VESA hole that supports wall mounting and is worry free to install.
3. New shape: Elegant and slim,fits to any indoor usage scenario. The dual-screen advertising display is more than just a screen, it is a powerful business&marketing tool
4. Original Screen: Professional industrial dual screen digital signage display for Indoor and in elevators media networks deployment
Quick Details
- Color:
-
Black, Black White
- Panel Size:
-
10.1" + 7"
- Pixel Pitch:
-
0.17*0.17mm & 0.15*0.15mm
- Place of Origin:
-
Guangdong, China
- Model Number:
-
WD1018T
- Brand Name:
-
ELC
- Function:
-
SDK
- Pixels:
-
0.17mm, 0.15mm
- Specification:
-
Touch Screen
- CPU:
-
RK3568
- RAM/ROM:
-
2G+16G
- Operation system:
-
android 11
- Aspect ratio:
-
800
- Speaker:
-
2*2W
- Interface:
-
RJ45, USB, Card slot
- Resolution:
-
10.1" : 1280*800; 7 inch: 1024*600
- Camera:
-
Front camera, 5.0M/P
- Application:
-
Elevator, Restaurant, Supermarket
|
Display
|
10.1”
|
Resolution
|
1280*800
|
|
Viewing angle
|
85/85/85/85 (L/R/U/D)
|
|
Contrast ratio
|
800:1
|
|
Luminance
|
250cd/m2
|
|
Aspect Ratio
|
16:10
|
|
7"
|
Resolution
|
1024*600
|
|
Viewing angle
|
80/80/80/80 (L/R/U/D)
|
|
Contrast ratio
|
800:1
|
|
Luminance
|
200cd/m2
|
|
Aspect Ratio
|
16:9
|
|
Interface
|
Card slot
|
TF,support up to 32GB
|
|
USB
|
USB for serial (TTL Level )
|
|
USB
|
USB host 3.0
|
|
Type-C
|
USB OTG Function Onely
|
|
Power jack
|
DC power input
|
|
RJ45
|
Ethernet interface
|
|
System
|
CPU
|
RK3568 Quad core cortex A55
|
|
RAM+ROM
|
2GB+16GB
|
|
Operation system
|
Android 11
|
|
Touch screen
|
10-Point capacitive touch ,Standard dual display with single touch ,optional dual display with dual touch
|
|
Network
|
WiFi
|
802.11b/g/n
|
|
Ethernet
|
10M/100M/1000M
|
|
Bluetooth
|
Bluetooth 4.2
|
|
Accessories
|
Adapter
|
Adapter,12V/2A
|
|
User manual
|
yes
|
|
Other
|
Microphone
|
Single microphone ,optional dual microphone
|
|
Speaker
|
2*2W
|
|
Camera
|
Front camera 5.0M/P
|
|
NFC
|
Optional
|
|
RFID
|
Optional
|
|
VESA
|
75*75 mm
|
|
Certificates
|
CE, FCC
|
Company Profile
1. 13 Years' R&D and Manufacturing
2. 30 Countries and Regions
3. 400+ Partner
4. 50+ Patents
5. 1000k Pcs Global Annual Shipments
