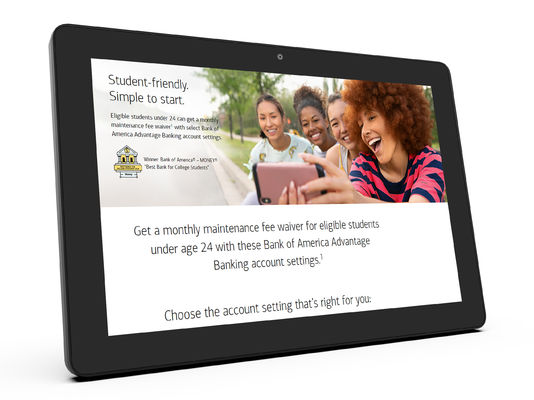

10.1 Inch Wall Mounted Digital Signage 2.0mp 1280x800 LCD Restaurant Board Panel
Appearance characteristics
1.Wall Mount: Bracket is optional for desktop placement of the device;Equipped with wall mounting bracket, support portal or landscape installation.
2. Original A + screen:Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
3. Lightweight fuselage: easy to install
4. Cooling hole: The fuselage has its own cooling holes to ensure that the machine can continue to operate, effectively reduce the damage caused by high temperature to the machine, and greatly prolong the service life of the machine.
Use Scenarios
1. Education: It can be used for online interaction between teachers and students
2. Entertainment: Smoothly run games and mainstream video formats.
3. Consumer ordering: Electronic menu display and order placement for restaurants
Software system
Our machine has strong CPU performance (Quad core processor).It can run all kings of applications smoothly .Different memory configurations are available.
1. Standard configuration:RK3288 2+16G Android 8.1 system；(Android 5.1/ 6.0 /8/9.1/ 10.1 /11 available)；
2. High version: RK3399 Android 9.0 (memory available) ( Android 7.1/9.0/10.0/11 available)
3. Untouchable version optional
Hardware interface:
1. Interface: sd card, usb, serial port, headphone jack, OTG port, rj45
2. Speaker:2*2W
3. Mic
4. POE part is optional
|
|
CPU
|
RK3288, Quad-core cortex A17
|
|
RAM
|
2GB
|
|
Internal memory
|
16GB
|
|
Operation system
|
Android 8.1
|
|
Touch screen
|
10-Point capacitive touch
|
|
|
Panel
|
10.1" LCD panel
|
|
Resolution
|
1280*800
|
|
Display mode
|
Normally black
|
|
Viewing angle
|
85/85/85/85(L/R/U/D)
|
|
Contrast ratio
|
800
|
|
Luminance
|
250cd/m2
|
|
Aspect Ratio
|
16:10
|
|
|
WiFi
|
802.11b/g/n
|
|
Ethernet
|
100M/1000M ethernet
|
|
Support BT
|
BT 4.0
|
|
|
Card slot
|
SD card
|
|
USB
|
USB host*2
|
|
Micro USB
|
Micro USB OTG
|
|
USB
|
USB for serial(RS232 format)
|
|
RJ45
|
Ethernet interface (POE function optional IEEE802.3at, POE+, class 4, 25.5W )
|
|
Power jack
|
DC power input
|
|
Earphone
|
3.5mm earphone + Micphone
|
|
|
Video format
|
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
|
|
Audio format
|
MP3/WMA/AAC etc.
|
|
|
jpeg
|
|
|
VESA
|
75x75mm
|
|
Speaker
|
2*2W
|
|
Microphone
|
yes
|
|
Camera
|
Front camera, 2.0M/P
|
|
Working temp
|
0--40 degree
|
|
Certificates
|
CE, FCC, RoHS
|
|
Language
|
Multi-language
|
|
|
Adapter
|
Adapter, 12V/1.5A
|
|
User manual
|
yes
|
About us :
- We have 8 production lines
- Our company covers an area of 10,000 square meters
- The monthly production capacity reaches to 150,000pcs
FAQ
1. Could you introduce your company and products?
Shenzhen Electron Technology CO., LTD. was founded in 2008. It covers an area of 10000 square meters, which has more than 300 employees. Our main products include android tablet, digital signage, advertising machine and android all in one. We have plenty experience and 13 years history of development, design, production and management in the field of digital signage. The daily output of our factory has achieved 5000pcs. Furthermore, the anual production capacity reaches to 1,500,000pcs. Our products are exported to over 30 countries and regions. Most of our products have got ISO9001 & ISO45001 & OHSA18001 & IECQ QC 080000 quality management system certifications. For more product information, please contact our sales manager online.
2. What is the MOQ on your product?
We can supply 1 unit for a sample order. There is a small quantity in stock. If you need a discount for bulk orders, please feel free to contact our online sales manager.
3. What payment method does your company accept?
We accept most payment methods and give preference to wire transfer.
4. What is your modes of transportation in logistics? What’s the delivery charge and delivery date?
Our mode of transportation mainly includes express, sea and air shipments, and the delivery charge is calculated based on your address and the product quantity. All products can be delivered within 7-10 days if we have stock. If you have any customization requirements, please contact us for confirmation. Our strong R&D team can meet your special needs in time.
5. What is your product's warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system certification, China Compulsory Certification(CCC), FCC, CE, RoHS, HDMI, and other certifications, and have been consistently praised by our customers. The warranty period is one year. Our company supports online after-sales service to respond to your questions in time and help you solve the problem as soon as possible.
