| CPU: | WA1056T (RK3568 / RK3288 / RK3576S) |
|---|---|
| Touch: | 10 Points Capacitive Touch |
| Camera: | 5MP Front Camera |
| RAM+ROA: | 2GB+16GB |
| NFC: | Optional，13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic Encrypted Tags And Cards |
| CPU: | WA1056T (RK3568 / RK3288 / RK3576S) |
|---|---|
| Touch: | 10 Points Capacitive Touch |
| Camera: | 5MP Front Camera |
| RAM+ROA: | 2GB+16GB |
| NFC: | Optional，13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic Encrypted Tags And Cards |

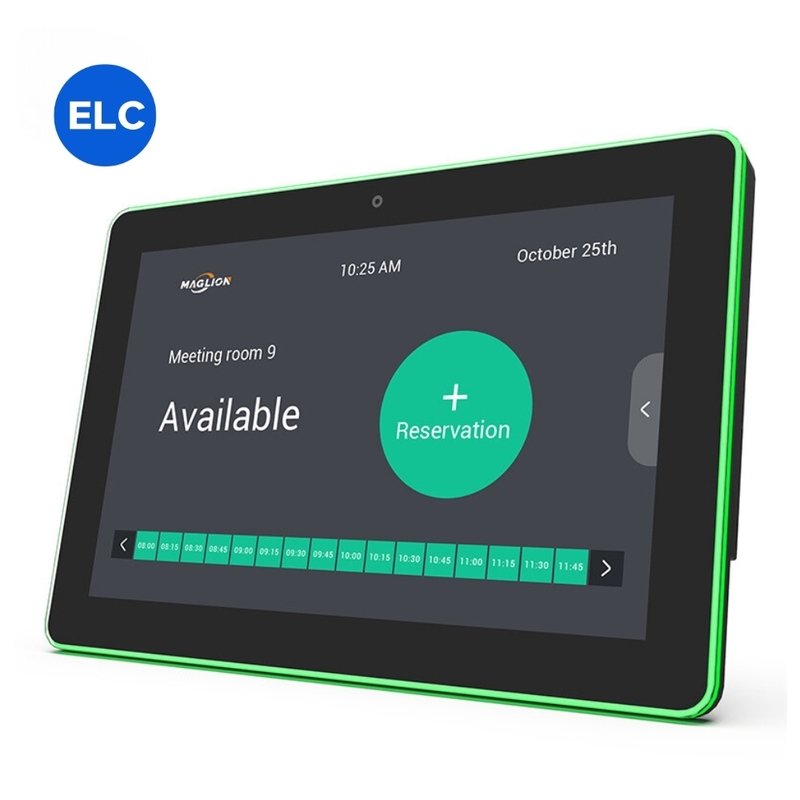

| LED Light Bar: | LED Light Bar With RGB And Mixed Color |
| RFID: | Optional ,125k,ISO/IEC 11784/11785,EM4100，TK4100/GK4100 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 7-25 dyas |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs per day |
| System | CPU | RK3568 Quad core cortex A55 |
| RAM | 2GB | |
| Internal memory | 16GB | |
| Operation system | Android 11 | |
| Touch screen | 10-Point capacitive touch | |

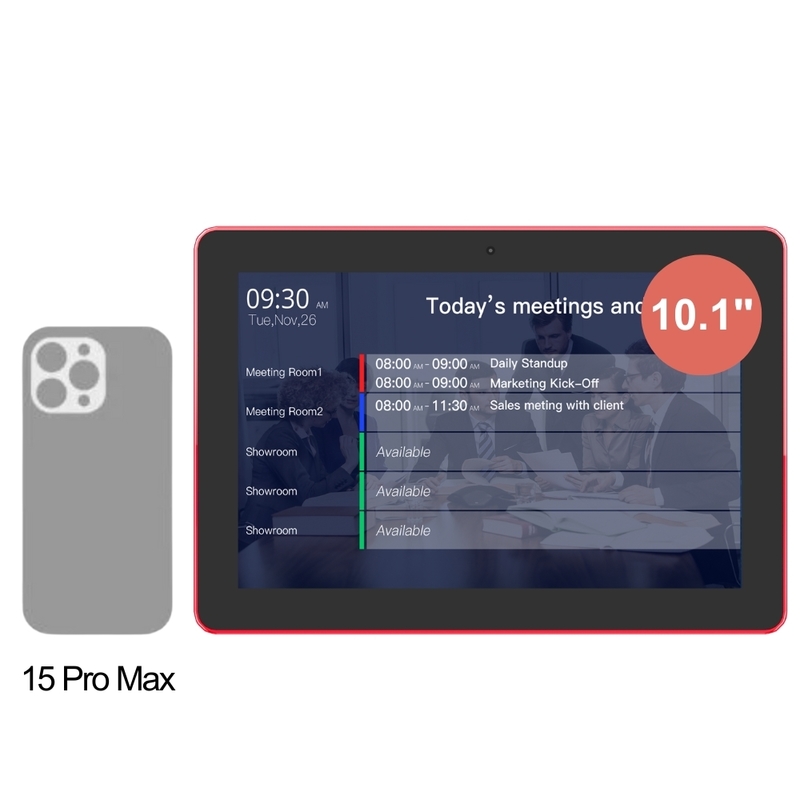

| Display | Panel | 10.1"LCD panel |
| Panel Type | IPS | |
| Resolution | 1280*800 | |
| Display Colors | 16.7M Colors | |
| Viewing angle | R/L 85/85, U/D 85/85 | |
| Display mode | Normally black | |
| Contrast ratio | 1500:1 | |
| Response Time | 25ms | |
| Back-light Type | ELed | |
| Luminance | 280cd/m2 | |
| Aspect Ratio | ,16:10 | |
| Network | WiFi | IEEE 802.11a/b/g/n/ac/ax |
| Buletooth | Bluetooth 5.4 | |
| Ethernet | 10M/100M/1000M ethernet | |

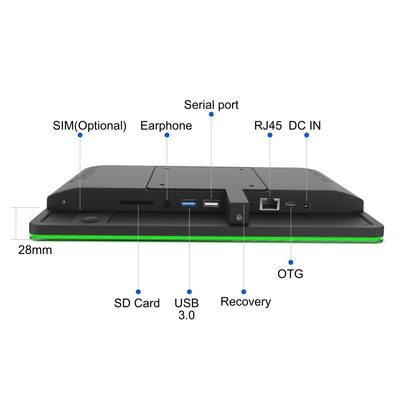

| Interface | SIM Slot | 4G Flow Card |
| SD Slot | SD card ,Max support to 64GB | |
| Earphone | 3.5mm earphone + Microphone | |
| USB | USB 3.0 host | |
| USB | USB for serial ( RS232 Level ) ,Optional USB Host | |
| RJ45 | Ethernet interface | |
| Micro USB | Micro USB OTG | |
| Power jack | DC power input | |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC, etc.支持最大到4K视频 |
| Audio format | MP3/WMA/AAC/WAV/OGG, etc | |
| Photo | JPEG/PNG/GIF,etc | |

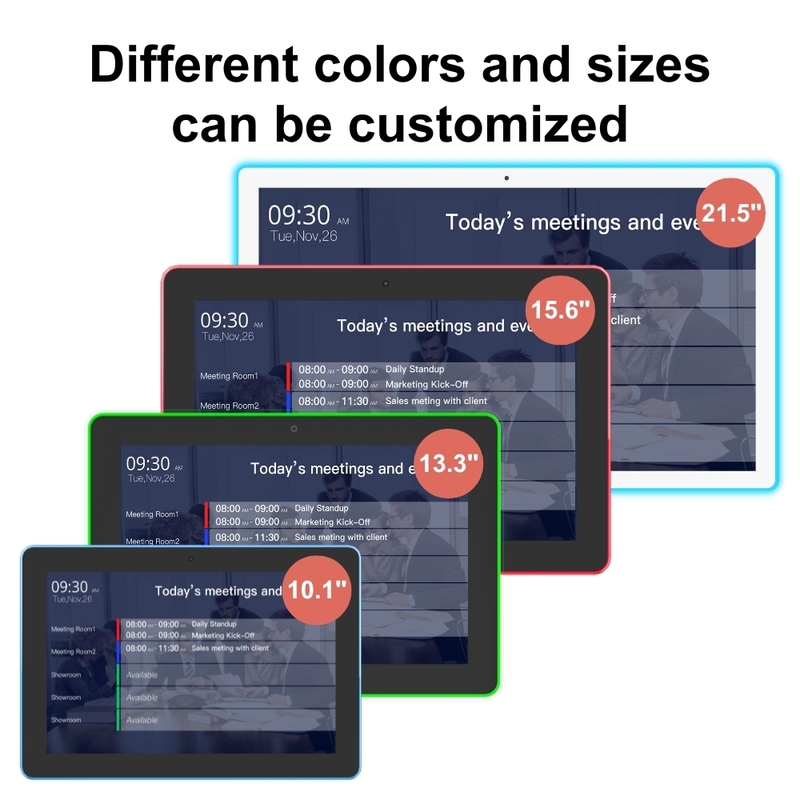

| Other | Product Colors | White/Black |
| VESA | 75*75 mm | |
| Button | Power | |
| G-sensor | Support 90 degrees | |
| Speaker | 2*2W | |
| Microphone | Single microphone | |

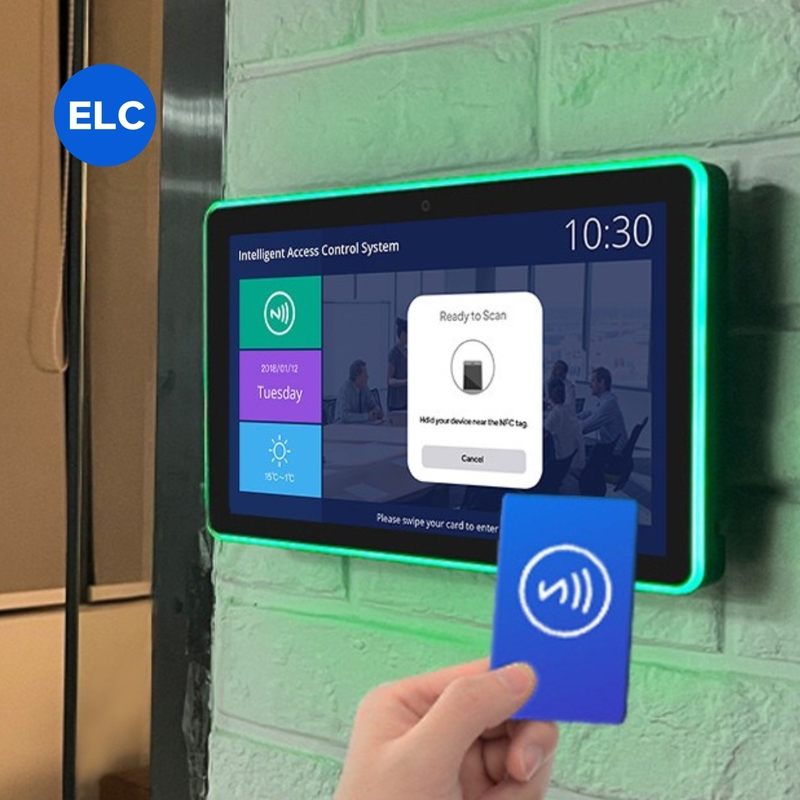

| NFC | Optional,13.56MHz,ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards |
|
| RFID | Optional ,125k,ISO/IEC 11784/11785,支持EM4100,TK4100/GK4100 | |
| LED light bar | LED light bar with RGB and mixed color | |
| Camera | Routine angle 5.0MP | |
| 4G Moduel | Optional | |
| Language | Multi-language | |
| Certificates | CCC/CE/FCC | |
| POE | Otional (Support IEEE802.3at,up to 30W ) | |
| Working Surrounding | Working Temperature | 0℃---40℃ |
| Storage Temperature | -20℃---60℃ | |
| Working Humidity | 20~80%RH | |
| Storage Humidity | 10~95%RH | |
| Accessories | Adapter | Adapter,12V/1.5A |
| User manual | *1 |

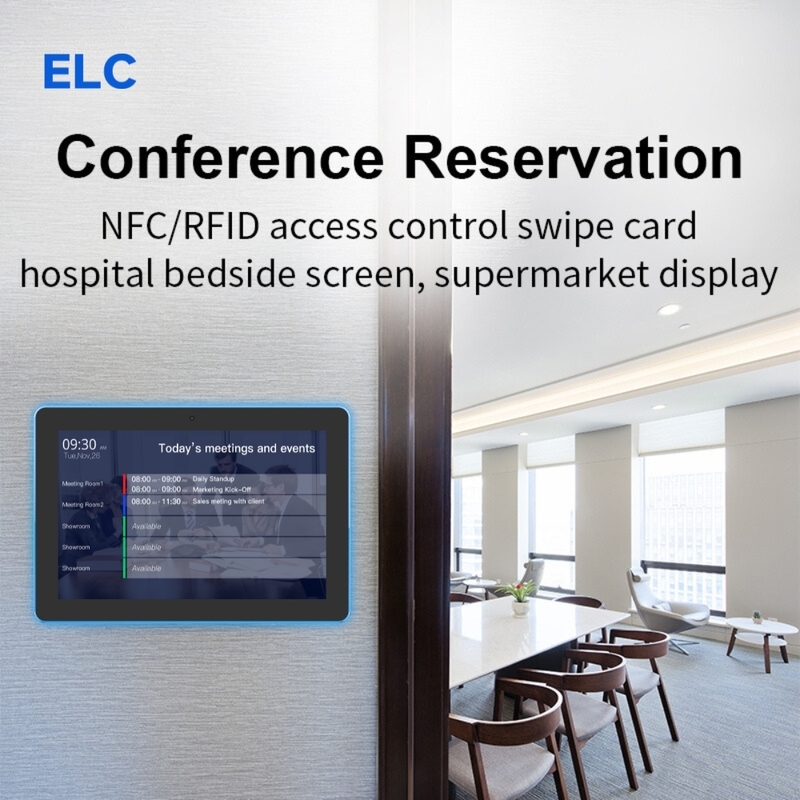

This Series is widely used for hotels reception desk, banks, restaurants, goverment service
